Chain conveyor
Article source：http://gyyfyc.cn Release time：2016-02-23 11:02 Browse times：
Technical parameters:

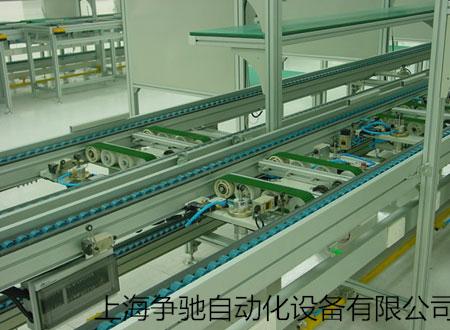

Chain conveyor with nylon roller chain traction differential, the fuselage Aluminum Alloy profile, the appearance is beautiful and practical. Line body is provided with a tooling plate, pneumatic block device, pneumatic lifting or transitional lifting rotary machine mechanism, tooling plate returns may design the lower level or the bypass returns, to meet the requirements of different production processes. Transmission mode is divided into free and compulsory beat beat. The operating assembly and testing lines are widely used in light industry and household appliances industry.
The main performance parameters of chain conveyor:
Chain pitch: T = 38.1mm
Single length: L = 30mm (load = 30kg / M)
Line width: B = 500 ~ 800mm
Station spacing: L = 1000 ~ 2000mm
Chain speed: Vmax = 5m / min
Tooling plate: speed is 3 times of differential chain
Tooling plate width according to the user process and
